Rema Engineers Make Thermoforming Packaging Machines, are designed for automated, high-efficiency packaging using flexible or rigid bottom film. Suitable for a wide range of industries-including food, seafood, meat, medical, and industrial-these machines integrate advanced technologies such as vacuum packaging, Modified Atmosphere Packaging (MAP), and Vacuum Skin Packaging (VSP). Engineered for precision and performance, our solutions help extend shelf life, enhance food safety, and enable cost-effective, large-scale production.

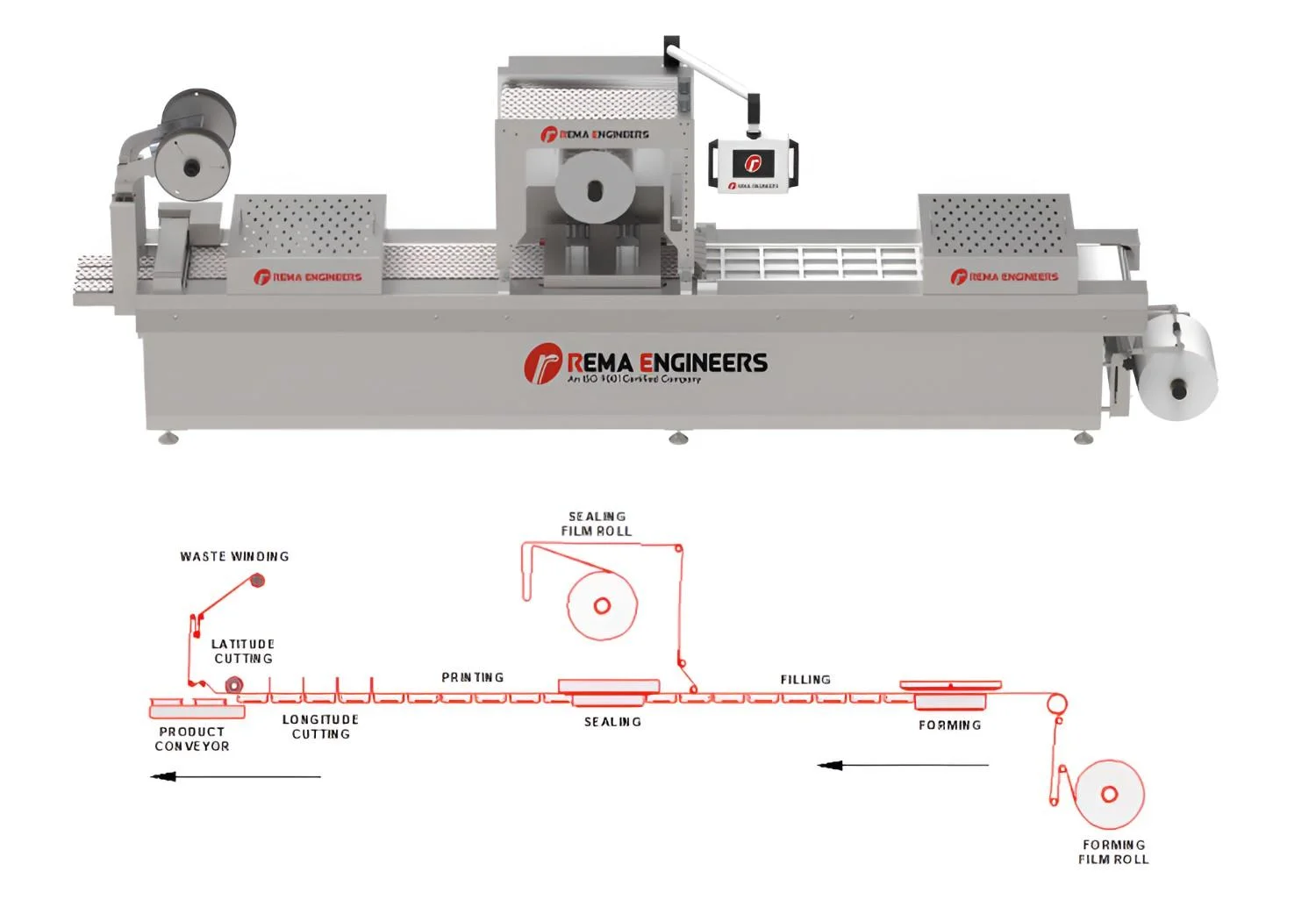

Thermoforming Vacuum Packing Machine
REMA ENGINEERS make high-speed, fully automatic thermoforming packaging machine designed for vacuum and MAP (Modified Atmosphere Packaging) applications. Ideal for fresh meat, poultry, seafood, cheese, dairy, and bakery products, this chain-driven machine ensures efficient packaging for both rigid and flexible bottom films with a speed of 4-8 cycles per minute.
- Standard Features:
- Versatile Packaging: Supports Paneer, Dates, Khoya, Indian sweets, Namkeen, Sea Foods, Meats, Bakery Products, Pharmaceuticals & Medical Parts and many more.
- Dual Servo Technology: Enhances speed, precision, and efficiency.
- PLC-Based Control System: Smart automation and real-time monitoring.
- Touchscreen HMI: Simplified operations and recipe management.
- Compact & Robust Design: Space-saving and reliable.
- Quick SKU Changeover: Pack various sizes easily.
- Low Maintenance: Built for long operation with minimal upkeep.
- Heat Sealing Jaws: Compatible with multiple film. types.
- CE Certified Components: Complies with global safety standards.
- Auto Film Adjustment Systems
- Optional Features:
- Nitrogen flushing
- Batch Coding & Printing System
- Dosing & Product Loading Systems
- Standard Model Technical Specifications:
| MODEL NO | RTFM-320 | RTFM-420 | RTFM-520 | RTFM-680 |
| Top Sealing Film Width | 295 mm | 395 mm | 495 mm | 657 mm |
| Bottom Forming Film Width | 322 mm | 422 mm | 522 mm | 682 mm |
| Power Supply | 3PHASE 415VAC, 50 HZ | |||
| Total Power | 13 KW | 18 KW | 25 KW | 30 KW |
| Compressed Air | >0.6 MPa | |||
| Cooling Water | >0.15 MPa | |||
| Vaccum Degree | <0.1 mbar | |||
| Machine Dimentions LXWXH | 5000X1000X1850mm | 6000X1100X1850mm | 8000X1200X1850mm | 1000X1200X1850mm |
| Vacuum Pump Capacity & Make | 100 M3/hr, Becker German | 100/200 M3/hr, Becker German | 100/200/300 м3/hr, Becker German | 100/200/300 м3/hr, Becker German |
| Packing Speed | 4 Cycle / Min | 4-8 Cycle / Min | 4-8 Cycle / Min | 4-8 Cycle / Min |
| Control Panel With 270 Degree Rotation & Push Pull | Siemens German Make PLC & HMI With 10" Touch Screen | |||
| Servo Gear Motor & Controller | Siemens German | |||
| Photo Electric Sensor | Banner USA | |||
| Film Gripper Chain | TYC Taiwan Make | |||
| All Switch Gears | Schneider | |||
| All Pneumatic Cylinders | Make SMC Japan | |||
| Film Scrap Winding System | Yes | |||
| Air Shaft For Roll Mounting | Yes | |||
| Air Shaft For Roll Mounting Machine Constructions | All Body SS 304 & Die Parts Aluminium | |||
