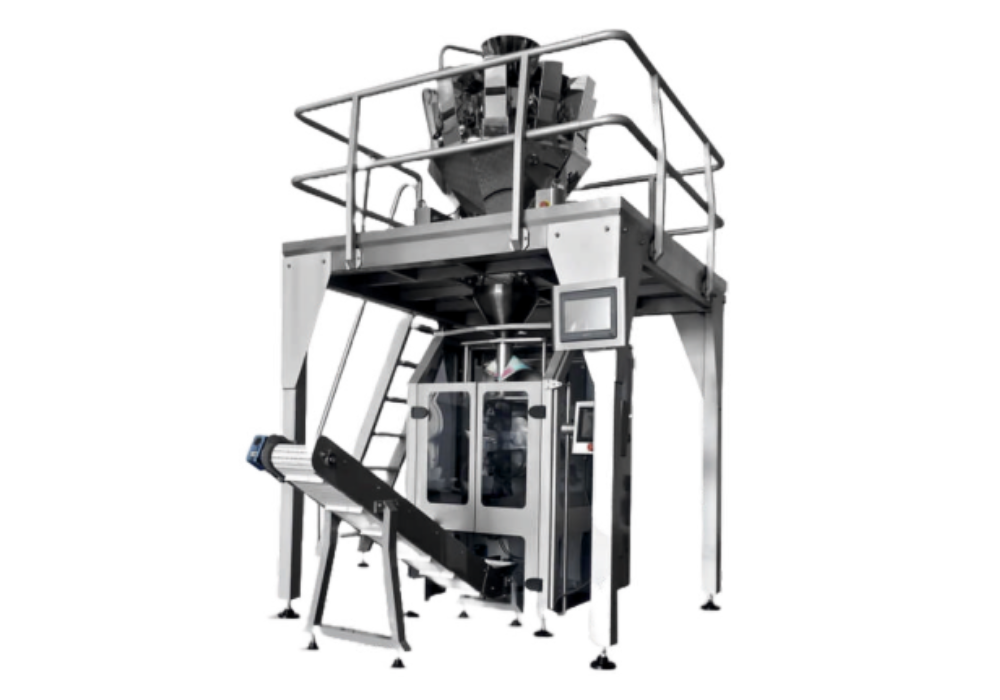

The Fully Automatic VFFS High-Speed Pouch Packing Machine from Rema Engineers is a cutting-edge solution designed to meet the needs of high-volume production lines, delivering precise, fast, and efficient pouch packaging. Ideal for industries such as food, beverages, pharmaceuticals, and chemicals, this machine offers superior performance, packaging products with consistent quality and speed. The Vertical Form Fill Seal (VFFS) system forms, fills, and seals pouches in one continuous process, reducing production time and enhancing operational efficiency.
Fully Automatic VFFS High Speed
Pouch Packing Machine
Equipped with advanced technology, the Fully Automatic VFFS High-Speed Pouch Packing Machine can handle a wide range of pouch sizes and types, including stand-up pouches, gusseted bags, and flat pouches. Its high-speed operation ensures quick and reliable packing, even for the most delicate products. The machine features a user-friendly interface that allows easy adjustments, ensuring smooth operation and minimal downtime. Built for durability, it is designed to handle large production volumes while maintaining exceptional sealing integrity. With Rema Engineers’ commitment to quality and innovation, this machine is a top choice for businesses seeking to streamline their pouch packaging process while maximizing efficiency and reducing operational costs.
- Standard Features:
- Continuous motion high speed machine designed especially for snack food application.
- Reputed CE marked PLC controller with touch screen HMI
- Control of critical operations by 3 axis servo motion.
- Mechanism to offer superior bloating effect for the pack.
- Optimum product falling height
- Special poker attachment for chips
- Specially designed quick and easy tool-less changeover of size parts.
- HACCP & GMP compatible construction.
- Perforation mechanism to produce chain of pouches.
- Optional Features:
- Pouch Take up conveyor.
- Material handling system for product feeding.
- Nitrogen flushing facility.
- Date and batch coding facility.
- Poker attachment.
- Servo motor driven side gusset mechanism.
- Remote data access.
- Retail friendly Euro hole facility.
- Pack size proportionate seal with jaws.
- CE certified solutions.
- Applications:
- Chips
- Pasta
- Dry Fruits
- Namkeen
- Macaroni
- Puffed Snacks
- Hi-Count Biscuits
- Breakfast Cereals
- Wrapped Candies
- Standard Model Technical Specifications:
| MODEL NO. | AVPS-300 |
|---|---|
| Rated (Bagger) Output (Max. upto) | 130 Packs per min. |
| Rated System Output (Bagger+Filler) | Upto 90 Packs per min. |
| Quantity | Max. upto 5000 CC by Volume |
| Pouch Format | Centre Sealed Pillow Pouch |
| Packaging Material | Heat Sealable Laminate |
| Min. Pouch Size (approx.) | W 70 mm x L 80 mm |
| Max. Pouch Size (approx.) | W 250 mm x L 380 mm |
| Maximum Roll Diameter | 500mm |
| Supply Voltage | 415 V AC - 3 Phase - 50 Hz |
| Connected Electrical Load | 10 Kw |
| Air Consumption | 3.5 Cubic Meter /Hour @ 6 Bar or 2 CFM. |
| Machine (Bagger) Dimensions mm | 1300 mm x 2300 mm x 1800 mm |
